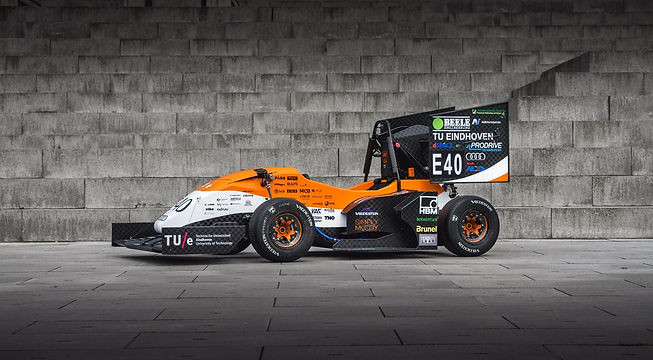

URE13

Achievements

FS Netherlands 2018

Overall 3/19 - TT Assen
 - 1st place Cost and Manufacturability

 - 3rd place Engineering Design
 - 3rd place Skidpad

FS Germany 2018

Overall 5/40 - Hockenheimring

FS Spain 2018

Overall 6/39 - Circuit de Barcelona-Catalunya
 - 3rd place Cost and Manufacturability
 - 3rd place Business Plan
 - 3rd place Skidpad

Technical Specifications

General

Weight

Length

Width

Height

0-100 time

​

Aerodynamics

Downforce

Dragforce

Drag Reduction

​

Chassis

Two-piece, top and bottom half, CFRP Sandwich Structure with aluminum honeycomb core. In-house laminated using pre-impregnated carbon fibers.

​

Electronics

14-way digital fusebox, settable via CAN

Live Telemetry via WiFi

Smart Display in steering wheel

Custom live telemetry dashboard

​

Control Software

Electronic Velocity Vectoring Differential

State of Charge estimation

Power limit controller

Wheel speed Control

​

Powertrain

Motor

Motor controller

Max power

Max torque

Battery capacity

Final Drive

​

Suspension

Front

Rear

ARS

Dampers

Tires

Trackwidth

Wheelbase

Braking

197kg

2925mm

1356mm

1155mm

2.3s

57kg at 60km/h

21kg at 60km/h

System on rear wing

4x Custom URE/AE PMSM

Custom URE/Prodrive quad inverter

140kW

4 x 400Nm

7.5kWh

12:1 compounded planetary gears set

Unqual double wishbone, pushrod actuated

Equal double wishbone, pushrod actuated

Anti-roll bar with flex blades

Low-speed adjustable KONI F1

205/50R10 custom Vredestein R&D

1180/1139mm (F/R)

1535mm

Custom brake discs
