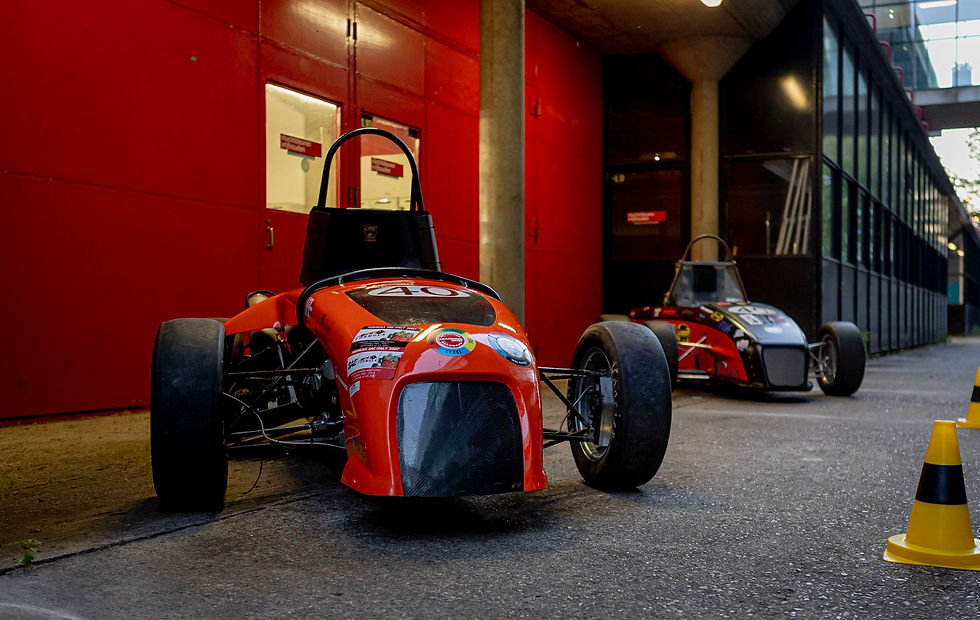

URE03

In the year 2007 the team had grown to 61 team members and with the - thanks to its aluminum chassis concept - lighter URE03 an endurance race was finished for the first time in Germany, gaining an encouraging 13th position.

Technical Specifications

General

Weight

Length

Width

Height

​

Chassis

Front Aluminum honeycomb structure sandwich panels monocoque

Rear steel tubular space frame

Foam crash nose

​

Electronics

Data acquisition system with 40 Sensors at 200hz over CAN

Custom designed steering wheel with shift lights + information LCD

​

Powertrain

Engine

Exhaust

Fuel System

​

Differential

Final Drive

Driveshafts

​

Suspension

Type

​

​

Trackwidth

​

Wheelbase

Wheels

Tires

​

Brakes

244kg

2534mm

1377mm

1188mm

Suzuki GSX-R 600 K6

Custom made by Bos Exhausts

Student designed injection system with MoTeC M400

Torsen FSAE special

Aluminum-magnesium alloy sprocket

Aluminum shafts connected with flexplates

Double A-arm, independent bump and roll tuning. Front pull-rod, rear push-rod actuated KONI 2612 dampers

Front 1250mm

Rear 1200mm

1600mm

13" Aluminum Keizer with magnesium centre

Front 20.5 x 6-13 R25A Hoosier

Rear 20.5 x 7-13 R25A Hoosier

2 piston callipers, student designed discs
