Achievements

FS UK 2014

Overall 14/94 - Silverstone
 - 3rd place Efficiency

FS Germany 2014

Overall 5/40 - Hockenheimring

FS Spain 2014

Overall 14/23 - Circuit de Catalunya

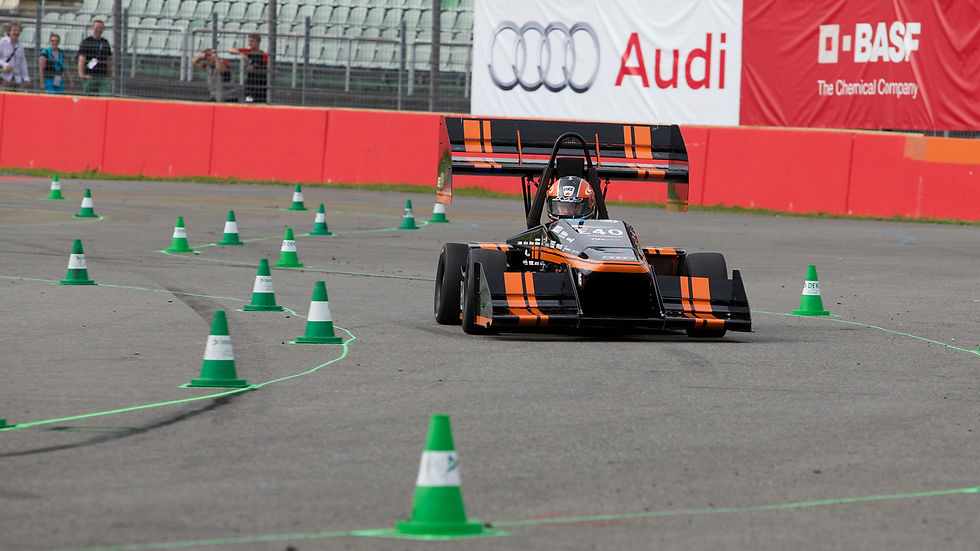

URE09

After the weight reduction, which was realised for the URE08, the next key to gain performance was the use of aerodynamic devices. These generate downforce, resulting in more grip of the tires. Furthermore, efforts were done to improve the reliability of the car. In the summer of 2014, the team managed to achieve great results at the events in the UK, Germany and Spain.

Technical Specifications

General

Weight

Length

Width

Height

0-100 time

Aerodynamics

Downforce

Dragforce

Chassis

Full carbon fibre monocoque

CFRP Crash nose

Electronics

MoTeC ADL3 dashboard and data acquisition system

Self-developed Battery Management System & HV board

Digital fuse box

Powertrain

Motor

Power

Battery capacity

Battery voltage

Battery config.

Cell type

Inverter

Transmission

Suspension

Type

Trackwidth

Wheelbase

Tires

Brakes



215kg

2793mm

1400mm

991mm

2.8s

55kg at 60km/h

17kg at 60km/h

YASA-750

50 kW nominal, 100 kW peak

7.5kWh

398V

96S1P

LiNMC pouch

Prodrive Custom

In-line single-stage planetary gearset with Drexler limited-slip differential, 1.6 reduction

Double wishbone. Front pull-rod, rear push-rod actuated KONI 2612 custom valving dampers

Front 1180mm

Rear 1139 mm

1535 mm

205/50R10 custom Apollo R&D

Front 4 piston, rear 2 piston callipers, adjustable bias, custom brake discs

Management


Bart Kienhuis - Team
Tim Houben - Operations
Nick Adriaans - Overall Tech
Zjelko Parfant - Vehicle Dynamics
Thomas Borrias - Electronics
Willian Bens - Chassis




Aerodynamics


Sander van den Berg
Tim Hogervorst
Steyn Westbeek
Bas Houben
Vignesh Pandian
Muthuramalingam
Vivek Devaraj
Stephan Stuijk




Chassis


Willian Bens
Bas van de Beuken
Oscar Meijer
Niels Vonk
Bram van de Schoot
Menno van Tongeren
Jimmy Ebert
Twan van de Berg
Bart Zeelen
Jorrit Goos
Xavier Leclaire
Jeroen Knippenberg
Tim Vermeer
Michel Legius




Electronics


Thomas Borrias
Dennis van de Vorst
Max Alden-Montaque
Martijn Patelski
Roger Berntsen
Richard Nathanael
Jos van Hees
Frithjof van Wylick
Tim Beckers
Gaurav Raina
Chris Platsikoudis
Neeraj Sujan
Ronak Gowadia
Driv Khandelwal




Operations


Sanir Pasalic
Martin Brochard
Tobias Ouwerkerk
Niels Schreuders
Sven Arends
Rudi van de Schoor
Ardjoen Mangré
Laura van Heijst
Marit Rijpert
Olga Lensen
Caroline Overgoor




Powertrain


Zjelko Parfant
Thomas Borrias
Sjoerd Knippenberg
Sagar Ranjan Patra
Lennard Katan
Tim Beckers
Jeroen Maar




Suspension


Zjelko Parfant
Frank Smedts
Oscar Scholle
Robbin van Hoek
Tim Josten
Torben Beernaert




Software


Zjelko Parfant
Simon Bus
Wessel van Zon
Bo Qiao
Hans Bus
Dennis van den Brandt




Tooling


Juriaan Moonen
Luc Worms
Erik Vermunt
Bjork van der Donk
Coy van Kempen
Huub Donkers




Processes


Thomas Hafkamp
Tim Staps
Marco Maaskant
Rob Neggers





Team Members
