URE19
Vera
Achievements
FS Netherlands 2025
Overall 2/44 - TT circuit Assen
- 2nd place Endurance
- 2nd place Business
- 3rd place Skidpad
- 3rd place Acceleration
FS Germany 2025
Overall 20/83 EV - Hockenheim ring
Overall 17/42 DC
- 6th place Business

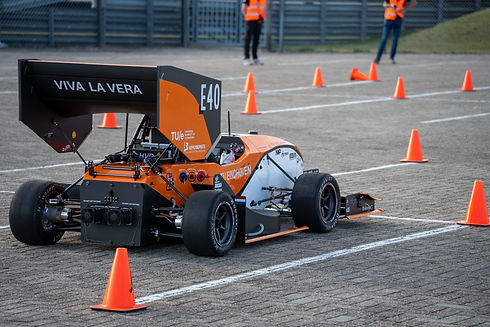

The URE19 was the car that broke records at competitions. It had a newly built monocoque, which meant the redesign of many parts on the car.
General
Weight
Length
Width
Height
0-100 time
Aerodynamics
Downforce
Dragforce
Weight
Chassis
Dual-piece carbon fiber monocoque
In-house laminated using pre-impregnated carbon fibers
Electronics
21-way digital fusebox, settable via CAN
Live Telemetry via WiFi
Smart Display in the steering wheel
Custom 2x live telemetry dashboard
Control Software
Torque Vectoring
Vehicle state estimator
State of charge estimation
Power limit controller
Wheel speed controller
Traction control
70kg at 60km/h
24kg at 60km/h
9.9kg
209kg
2922mm
1417mm
1180mm
2.1s
Team Members
4x Fischer
2x Lenze Mobile DCU 60/60
140kW/80kW (competition limited)
4 x 29.1Nm
7.2kWh
600V
14.06:1 compounded planetary gear set
Powertrain
Motor
Motor controller
Max power
Max torque
Battery capacity
Battery voltage
Final drive
Suspension
Front
Rear
ARS
Dampers
Tires
Trackwidth
Wheelbase
Braking
Autonomous Systems
Driverless ECU
LiDAR Sensor
Camera Sensor
Cone detection
Localisation & mapping
Path planning
Path tracking
Steering cotrol
Velocity control
Multilink suspension
Multilink suspension
Front and rear axle anti-roll system with adjustable stiffness
KW 18x18x18x18 way adjustable
FS dampers
Hoosier 16.0X7.5-10 R20
1220/1220mm (F/R)
1535mm
AP racing calipers with custom brake disc
Nvidia Jetson Orin AGX
Ouster OS1-128 Rev 7
NileCAM81_CUOAGX
Custom algorithms for cone detection
& color matching
FastSLAM 2.0
Cubic spline, custom modes per event
Control based on bicycle model
Dual-Loop on position and velocity level
Proportional control and feedforward
